M. Deriving Roughness with ToPCAT

Overview

This exercise shows how GCD can be used for coming up with statistical models of error. We will cover coincident point analysis, interpolation error, and using the ToPCAT algorithm to look at statistics from high resolution point clouds within a user-defined moving voxel.

Data and Materials for Exercises

Datasets

M_ToPCATRoughness.zip File of Data for this Exercise

Prerequisite for this Exercise

• Some ArcGIS experience
• ArcGIS 10.X w/ Spatial Analyst Extension
• GCD Add-In

Step by Step

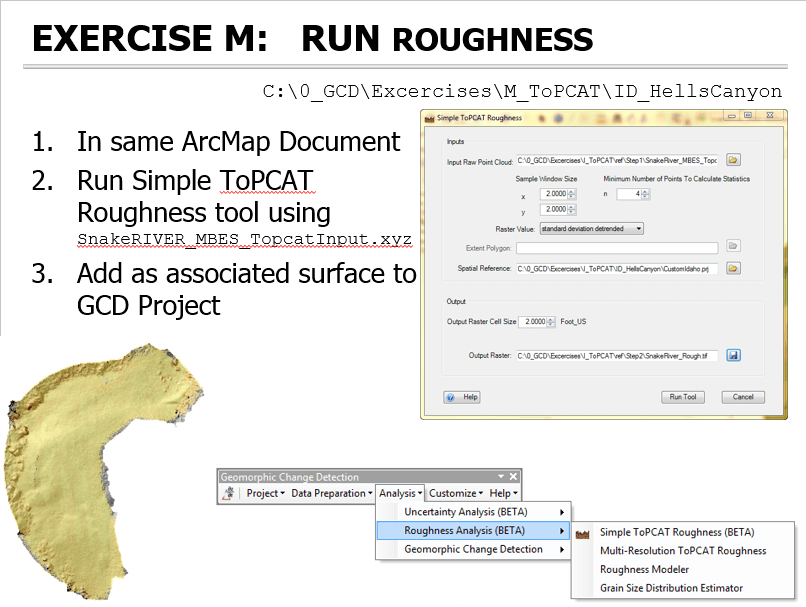

Run ToPCAT to get Roughness Surface (Simple)

Run ToPCAT as Associated Surface to Get Roughness

Exercise M - Part 3: Use Associated Surface Panel to Create Roughness

C:\0_GCD\Exercises\M_ToPCATRoughness\TLS_Flume\Exercise

1. Start new ArcMap Document

**2. **Open GCD Project ToPCATRoughnessTLSFlume.gcd

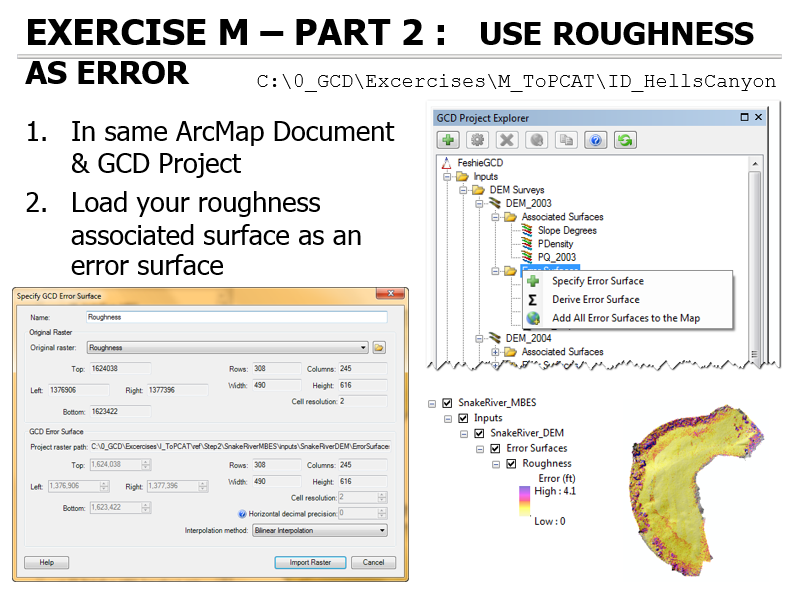

**3. **For each DEM in GCD Project Select Add Associated Surface and from this menu choose to Calculate a Roughness Raster.

4. Use the *.pts file associated with each flume run as input to the Generate Surface Roughness Raster dialog.

5. Due to scale of flume data you may want to adjust symbology.

Related Online Help or Tutorials for this Topic

• Parent Workshop Topic
• GCD 6 Help
  • ToPCAT Submenu
  • Simple ToPCAT Roughness
  • Create Roughness as Associated Surface

---
